Description

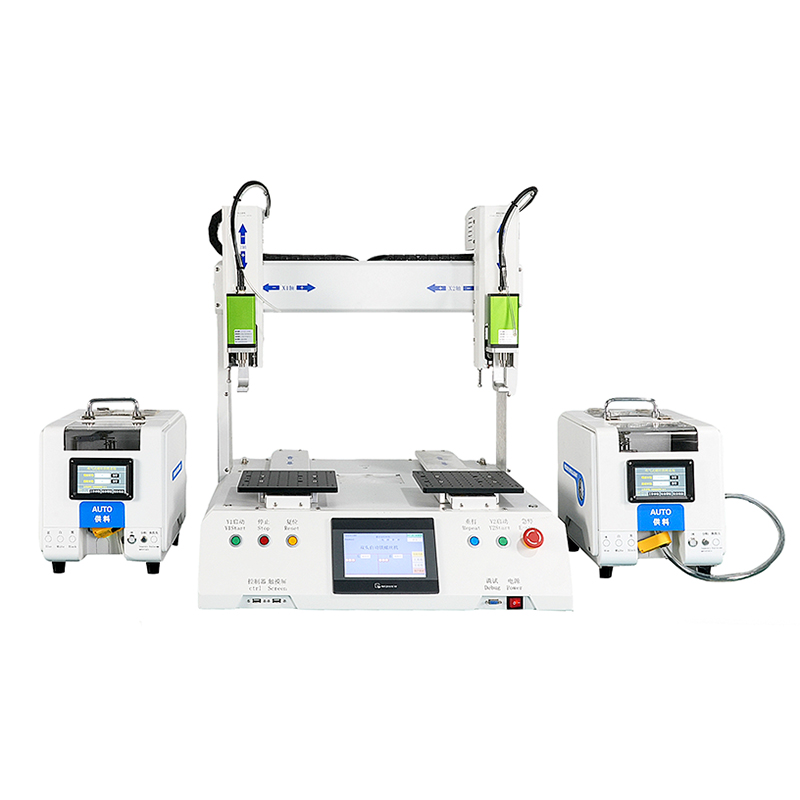

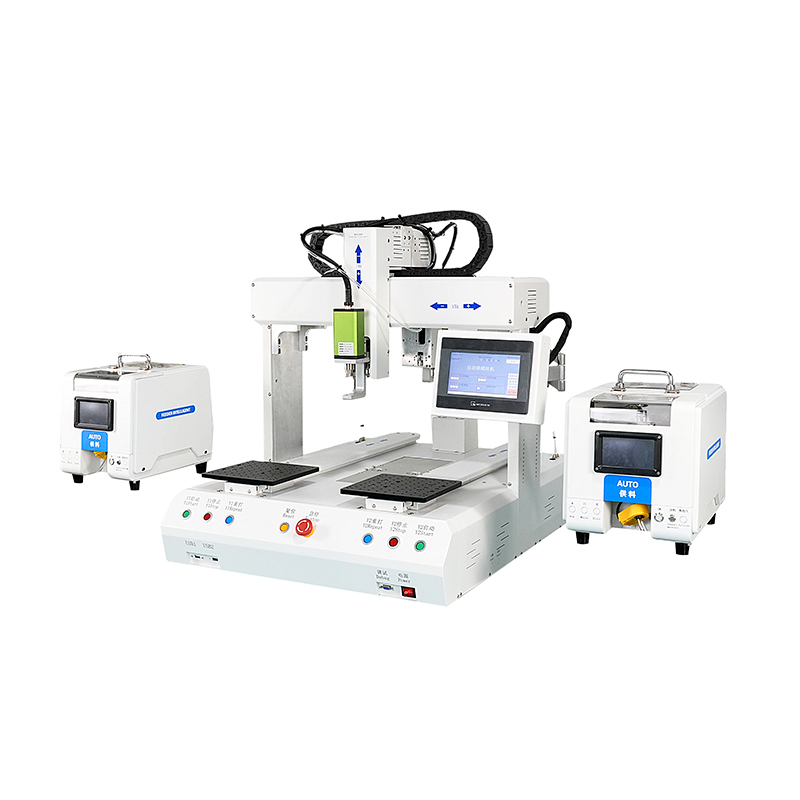

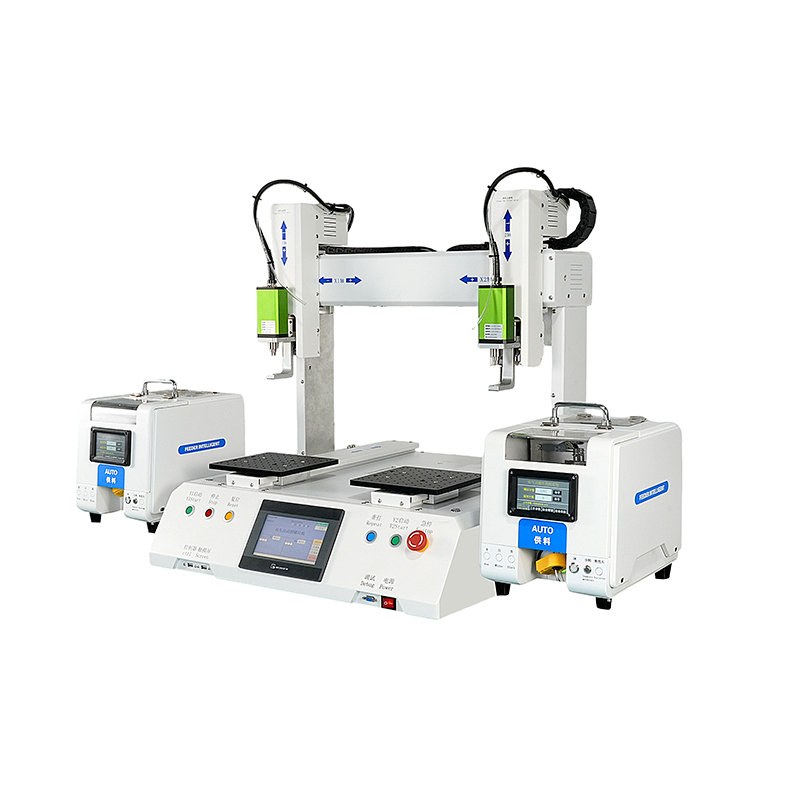

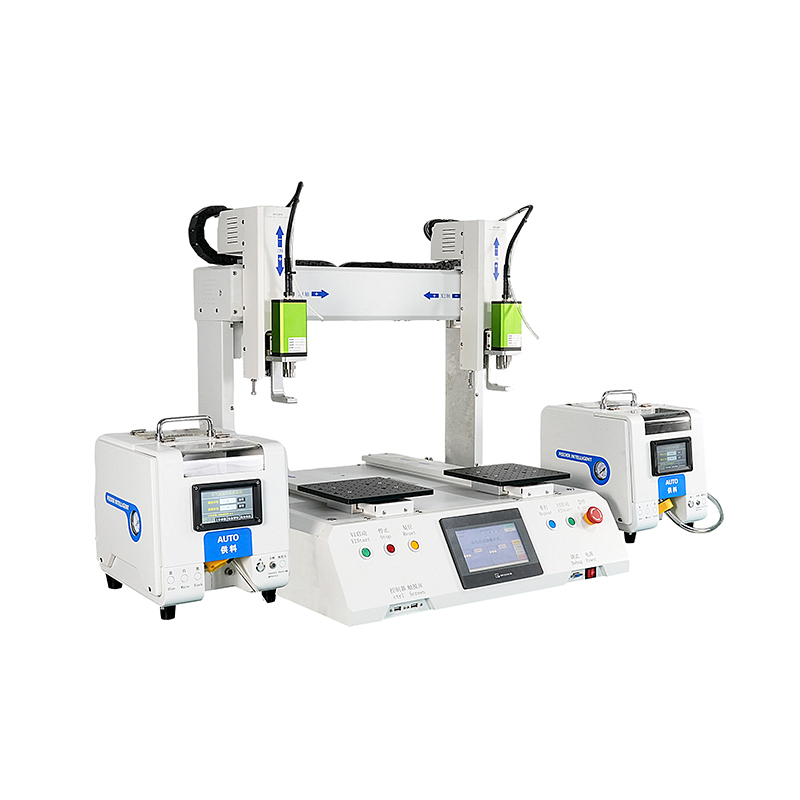

6-axis automatic screw locking machine

Main functions:

• The screw material can be obtained by vacuum suction or magnetic suction;

• Support deep hole, inclined hole, gourd surface, and surfaces of different heights;

• Support the simultaneous installation of two types of screws (one product), and the intelligent servo electric screwdriver can set three types of the same torque at the same time;

• The sheet metal frame has strong rigidity, and the height position of the feeder can be adjusted,supporting products with different heights and strong compatibility;

• Closed loop stepper motor, high precision, position compensation, no step loss, small vibration amplitude,

• Equipped with high-performance motion control system, easy to program with foolproof programming;

• Paired with the Weilun Tong human-machine interface touch screen, the lock status is dynamically displayed, and the electri.

Equipment purpose:

• Suitable for mobile phones, cordless phones, calculators, navigators, speakers, cameras, learning devices, small appliances, toys, etc.

Screw Machine Parts：

Technical Specifications:

Technical Specifications
Locking Range	220*350*90mm (unilateral Y*Z)
Overall Dimensions	710*730*780mm (Width, Length, Height)
Drive Type	Closed-loop precision stepper motor
Positioning Accuracy	±0.02 mm
Control System	Touch screen + high-performance motion control card
Electric batch system	Intelligent servo electric batch, freely set torque and speed
Lock payment efficiency	Approximately 1.2 seconds
program capacity	100 groups
Equipment power	1500W
power supply	220VAC
gas source	0.5-0.6KPa
Total weight	110KG
