Description

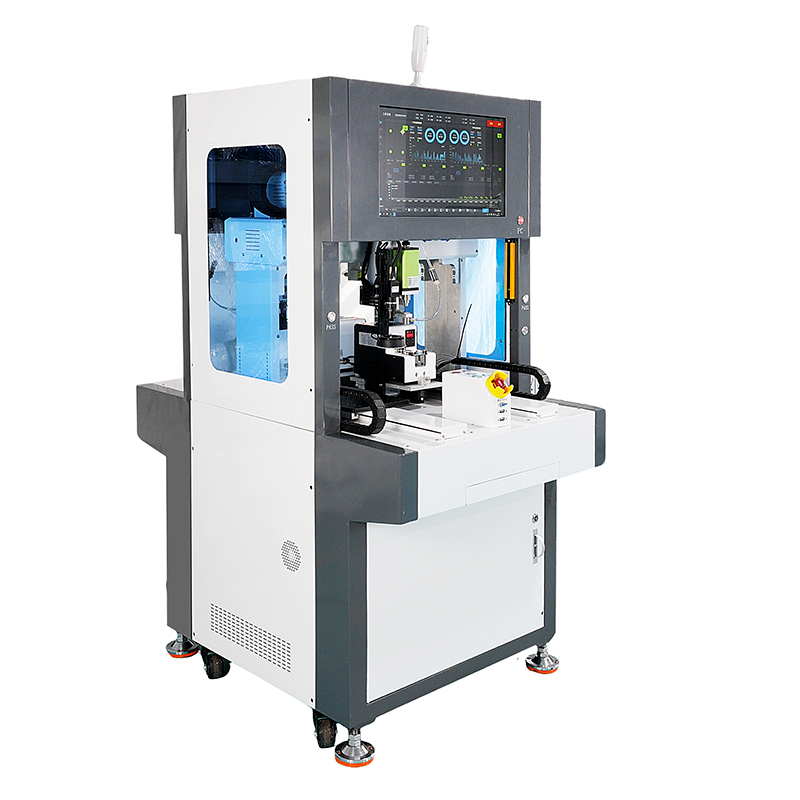

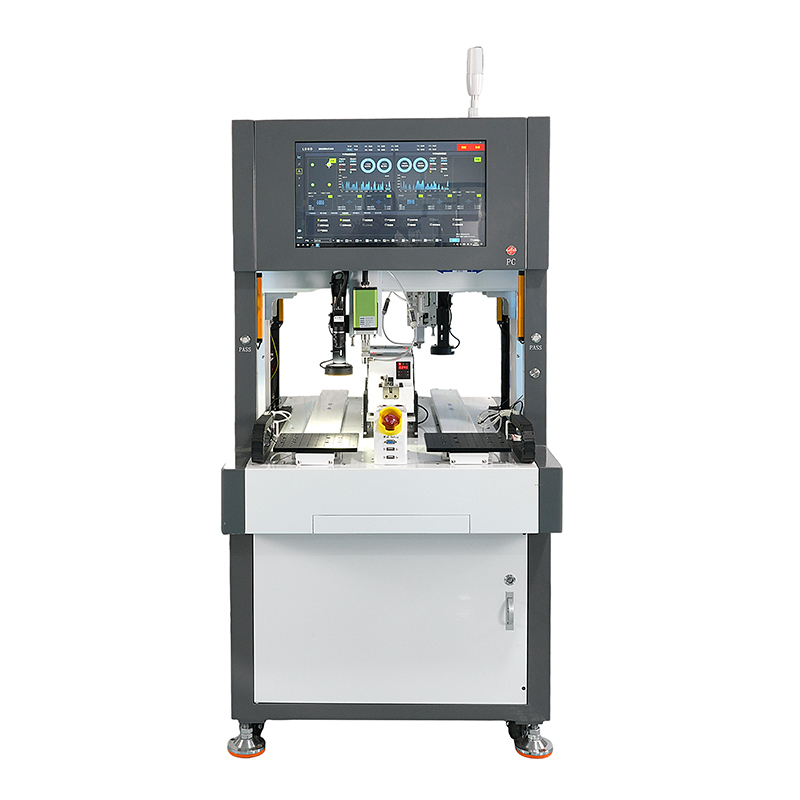

PC-controlled 6-axis automatic screw locking machine
Main functions：
- CCD positioning、PC host, compact yet powerful, with high cost performance and strong expandability;
- IPC motion control system with visual programming and unlimited data storage;
- Graphical display of screw locking positions and results, solving the problem of difficult troubleshooting of defective points;
- Equipped with an intelligent electric screwdriver (optional),supporting arbitrary torque and speed setting, and outputting torque waveforms and real-time torque values;
- Configured with a screw floating height displacement sensor to automatically detect and rectify floating height defects;
- With intelligent detection function, capable of identifying missing locking, floating locking, thread slipping and other anomalies;
- Features production statistics & traceability and MES connection functions (optional).
Equipment purpose：
- Suitable for locking screws, applied to general platforms in industries such as 3C electronics and home appliances.
Screw Machine Parts：
Technical Specifications：
| Technical Specifications | |
| Locking Range | 220*220*90mm(unilateral Y*Z) |
| Overall Dimensions | 1150*800*1650mm (Width, Length, Height) |
| Drive Type | Closed-loop precision stepper motor |
| Positioning Accuracy | ±0.02 mm |
| Control System | 15.6-inch IPC + 6MP CCD + High-performance motion control card |
| Electric batch system | Intelligent servo electric batch, freely set torque and speed |
| Lock payment efficiency | Approximately 1.5 seconds |
| program capacity | 100 groups |
| Equipment power | 1500W |
| power supply | 220VAC |
| gas source | 0.5-0.6KPa |
| Total weight | 250Kg |
