Description

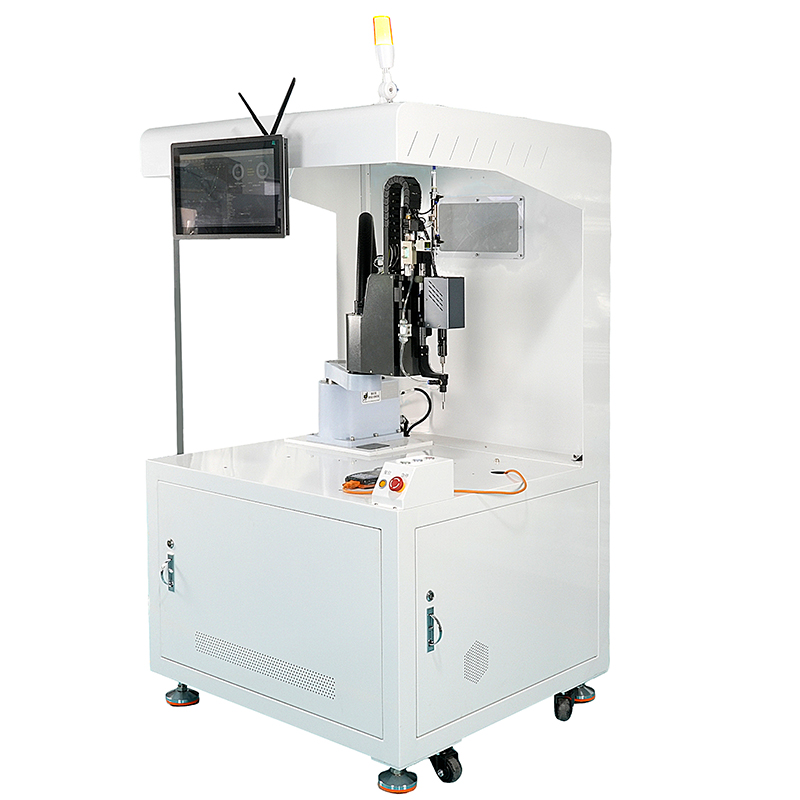

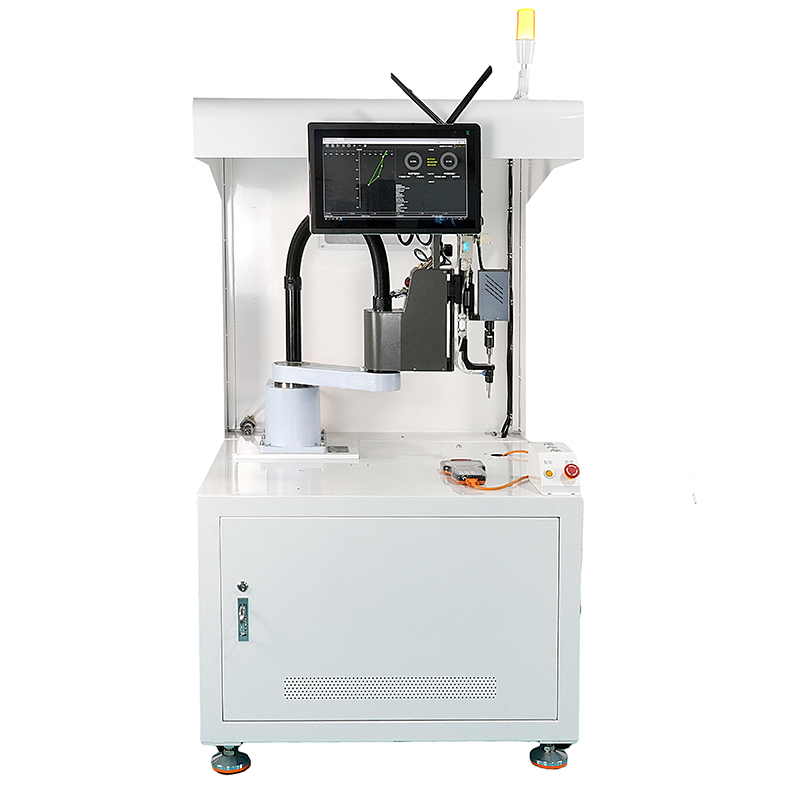

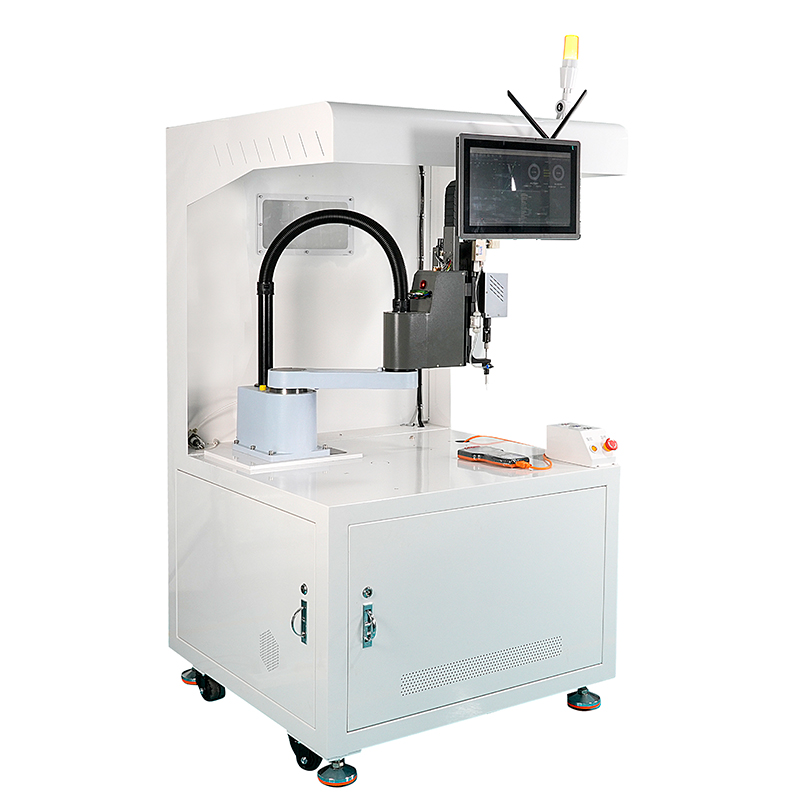

SCARA robot automatic screw locking machine

Main functions：

• CCD positioning、PC host, compact yet powerful,Suitable for online scenarios;

• IPC motion control system with visual programming and unlimited data storage;

• Graphical display of screw locking positions and results, solving the problem of difficult troubleshooting of defective points;

• Equipped with an intelligent electric screwdriver (optional), supporting arbitrary torque and speed setting, and outputting torque waveforms and real-time torque values;

• Configured with a screw floating height displacement sensor to automatically detect and rectify floating height defects;

• With intelligent detection function, capable of identifying missing locking, floating locking, thread slipping and other anomalies;

• Features production statistics & traceability and MES connection functions (optional).

Equipment purpose：

• For screw locking, used in online screw locking of 3C electronics & home appliances.



Screw Machine Parts：

Technical Specifications：

Technical Specifications
Locking Range	400*600*90mm(unilateral Y*Z)
Overall Dimensions	Customization (Width, Length, Height)
Drive Type	Closed-loop precision stepper motor
Positioning Accuracy	±0.02 mm
Control System	15.6-inch IPC + 6MP CCD + High-performance motion control card
Electric batch system	Intelligent servo electric batch, freely set torque and speed
Lock payment efficiency	Approximately 1.5 seconds
program capacity	100 groups
Equipment power	1500W
power supply	220VAC
gas source	0.5-0.6KPa
Total weight	250Kg
