Description

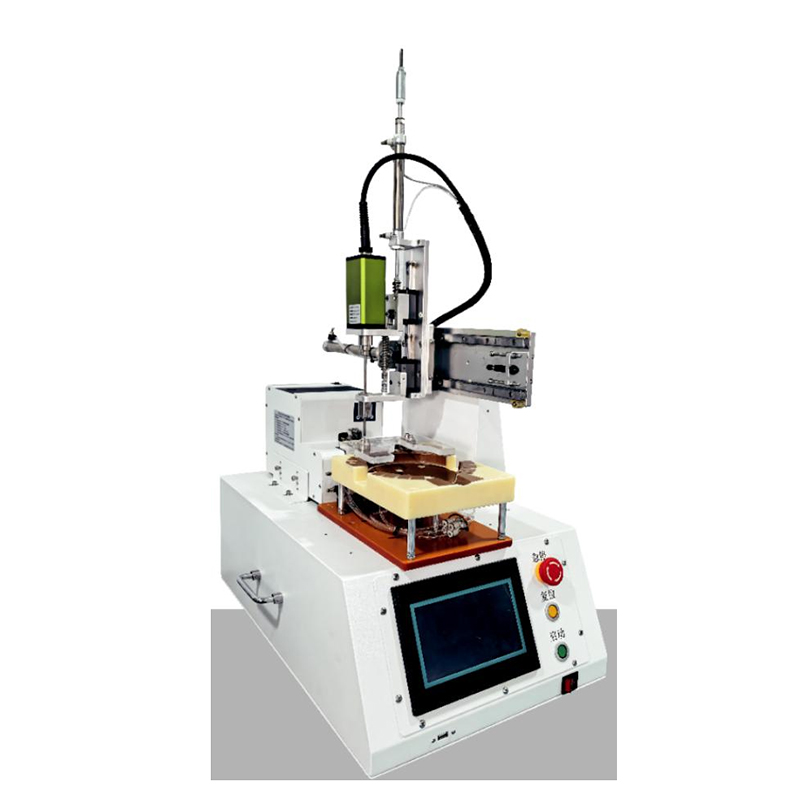

Two axis automatic screw locking machine – machine configuration

Main functions:

• Optional screw picking methods: vacuum suction,magnetic suction, air-blow, etc.

• Compact size, suitable for single-screw fastening applications.

• Rigid sheet metal frame; height of feeder is adjustable.
• Supports servo electric screwdriver with torque adjustment via touch screen.

• Equipped with high-performance motion control system, user-friendly programming, easy to operate.

• With human-machine interface (HMI) touch screen,dynamically displays locking status; screwdriver speed and torque can be monitored in real time.

Equipment purpose:

• Suitable for mobile phones, cordless phones, calculators, navigators, speakers, cameras, learning devices, small appliances, toys, etc.

Technical Specifications:

Technical Specifications
Locking Range	unilateral
Overall Dimensions	400*750*900mm (Width, Length, Height)
Drive Type	Cylinder drive
Positioning Accuracy	±0.02 mm
Control System	Touch screen+high-performance motion control card
Electric batch system	Intelligent servo electric batch, freely set torque and speed
Lock payment efficiency	Approximately 1.2 seconds
program capacity	100 groups
Equipment power	300W
power supply	220VAC
gas source	0.5-0.6KPa
Total weight	30Kg
