Description

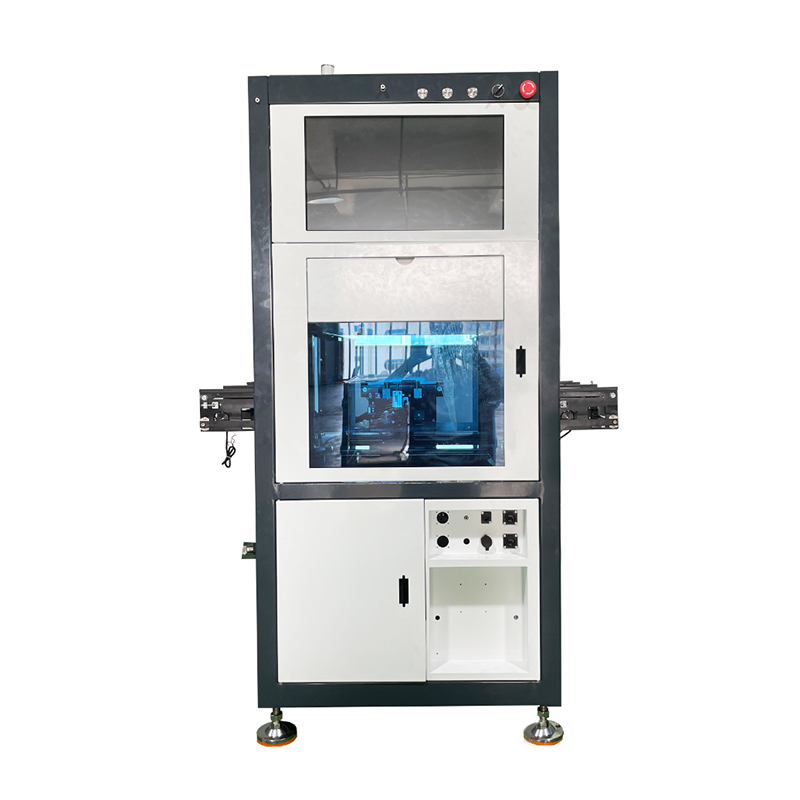

Online double-rail screw machine

Main functions：

• Back-to-back dual X dual Y structure, available for offline or online operation.

• IPC motion control system, visual programming,
• unlimited data storage.
• CCD visual positioning, intelligent screening of defective screw holes.

• CCD-assisted teaching of screw coordinates, eliminating manual visual positioning errors.

• Graphical display of locking positions and results, making it easy to locate defects.

• Equipped with intelligent electric screwdriver,adjustable torque and speed, output torque waveform and torque value.

• Equipped with screw floating height displacement sensor, automatic detection and correction of floating height defects.

• Equipped with bit pressure detection sensor, automatic detection of locking downward pressure.

• Intelligent detection functions for missing locking,floating locking, thread slipping, etc.

• Supports production statistics, traceability and MES connection.



Equipment purpose：

• Suitable for online screw locking, widely used in mobile phones, smart watches, tablet PCs and other products.

Screw Machine Parts：

Technical Specifications：

Technical Specifications
Locking Range	200*220*90mm(unilateral Y*Z)
Overall Dimensions	1100X650X1650 (Width, Length, Height)
Drive Type	Closed-loop precision stepper motor
Positioning Accuracy	±0.02 mm
Control System	15.6-inch IPC + 6MP CCD + High-performance motion control card
Electric batch system	Intelligent servo electric batch, freely set torque and speed
Lock payment efficiency	Approximately 1.5 seconds
program capacity	100 groups
Equipment power	2000W
power supply	220VAC
gas source	0.5-0.6KPa
Total weight	250Kg
