Description

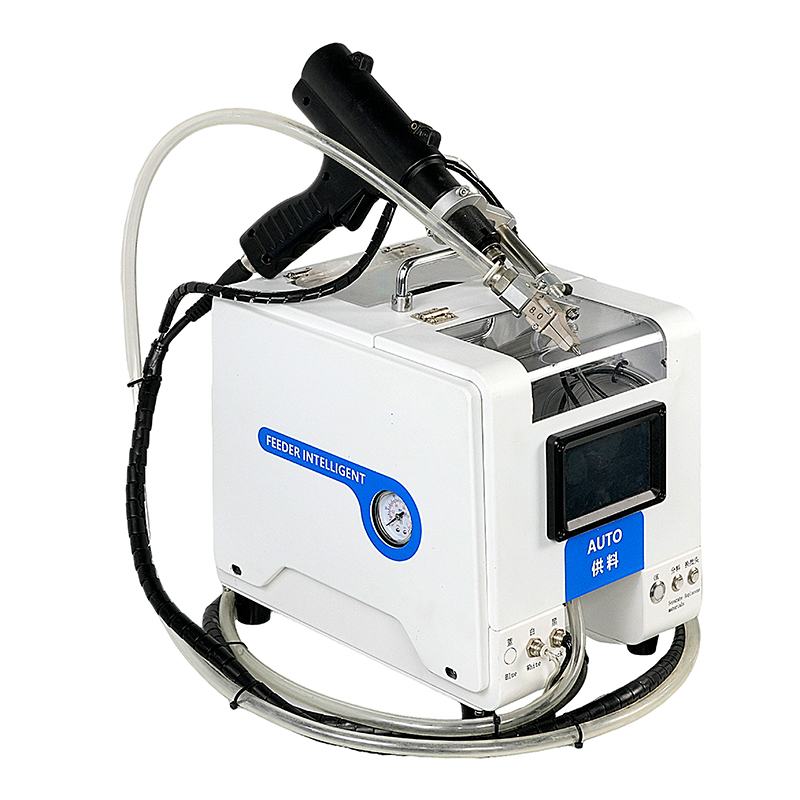

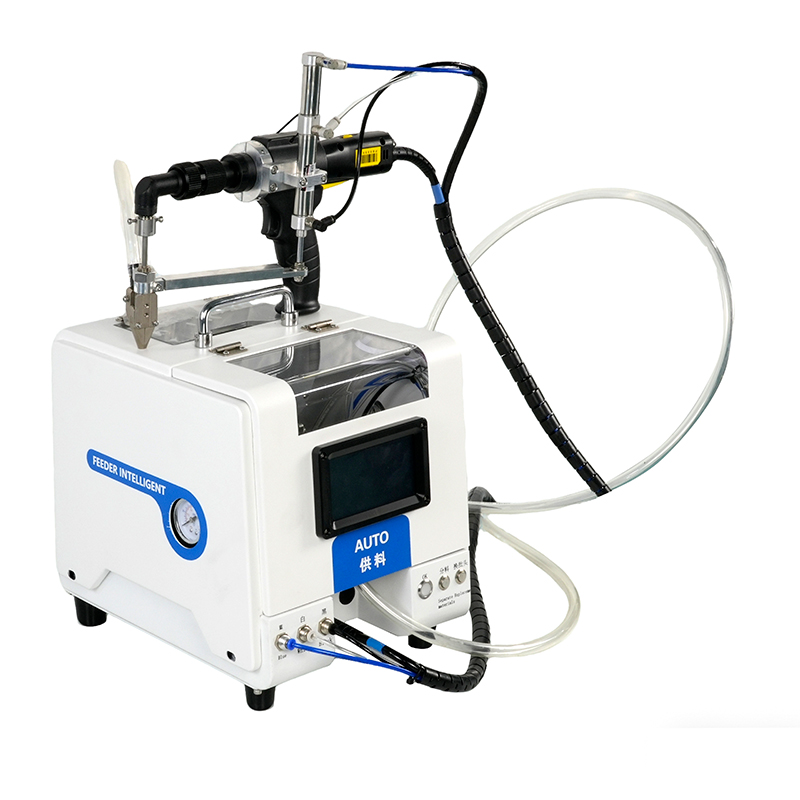

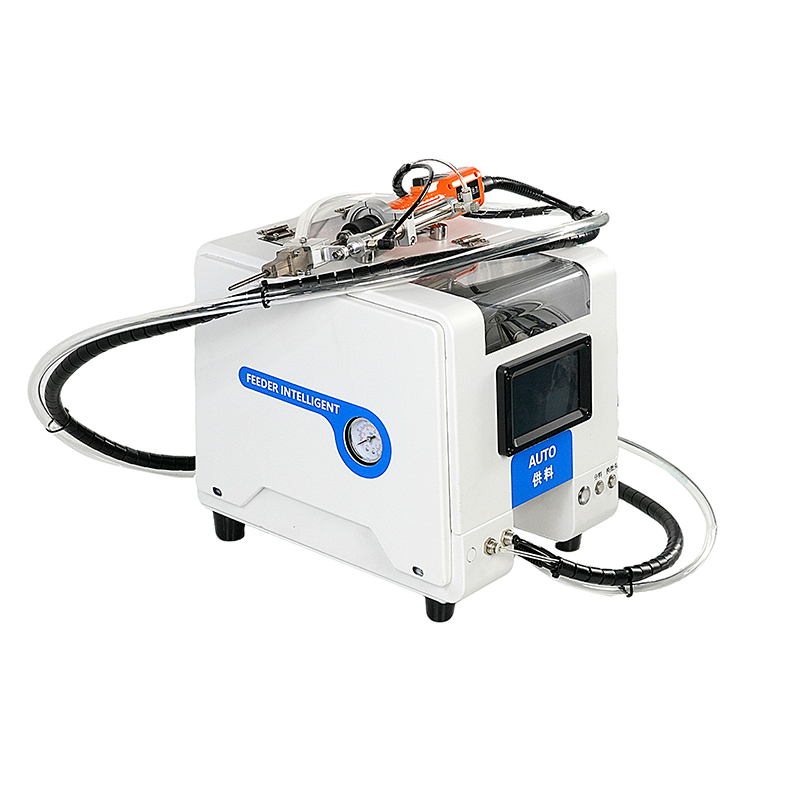

Medium Handheld screw locking machine –machine configuration

Model: SDZ-208

Main functions：

• Higher efficiency, automatic feeding,adjustable torque.

• Equipped with various alarm functions and counting function.

• Compatible with both steel screws and stainless steel screws.

• Suitable for deep holes, inclined holes, side holes, curved surfaces, and uneven surfaces.

• Easy to operate, no professional personnel required for debugging.

• Smooth feeding, no screw jamming,durable and reliable.

Equipment purpose：

• Suitable for semi-automatic locking of M1.4~M4 screws,applied to toys, calculators, hardware parts, speakers, learning machines,small home appliances, etc..

Technical Specifications：

Technical Specifications
Overall Dimensions	428*226*305mm (Length, Width, Height L*W*H)
Drive Type	Cylinder push-pull type;
Control System	Touch screen + control card
Electric Batch System	Good partners include HHB Emperor Pavilion, Jietaida, Qilisu, etc.
Lock Payment Efficiency	About 1 second
Equipment Power	200W
Total Applicable Screw Length	≤25mm
Feeder Capacity	400ML
Power Supply	220VAC
Gas Source	0.5-0.6KPa
Total Weight	15Kg
