Description

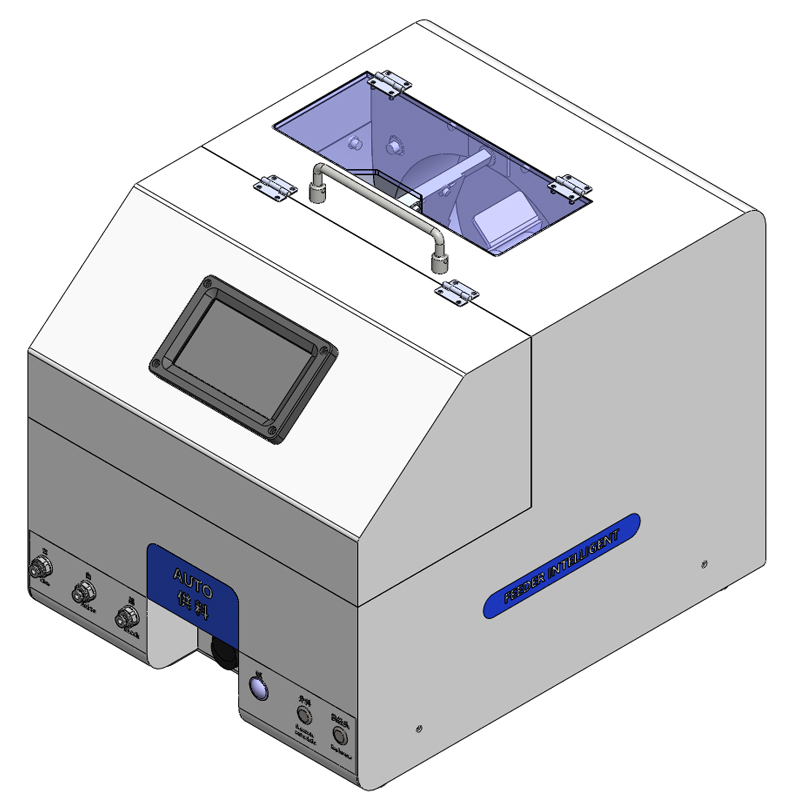

Large drum-type air-blow feeder –machine configuration

Main functions：

• Higher efficiency, automatic feeding, supports 1-out-1 and 1-out-2 feeding.

• Equipped with various alarm functions and counting function.

• Compatible with both steel screws and stainless steel screws.

• Supports ultra-long distance feeding up to 5–8 meters.
• Easy to operate; no professional personnel required for debugging.

• Smooth and stable discharge, no screw jamming,durable and reliable.

Equipment purpose：

• Applicable for air-blow feeding of M1.4–M8 screws

Technical Specifications：

Technical Specifications
Overall Dimensions	400*325*325mm (Length, Width, Height L*W*H)
Drive Type	Drum feeding;
Control System	Touch screen + control card
Electric Batch System	Good partners include HHB Emperor Pavilion, Jietaida, Qilisu, etc.
Lock Payment Efficiency	About 0.8 second
Equipment Power	50W
Total Applicable Screw Length	≤40mm
Feeder Capacity	800ML
Power Supply	220VAC
Gas Source	0.5-0.6KPa
Total Weight	20Kg
