Description

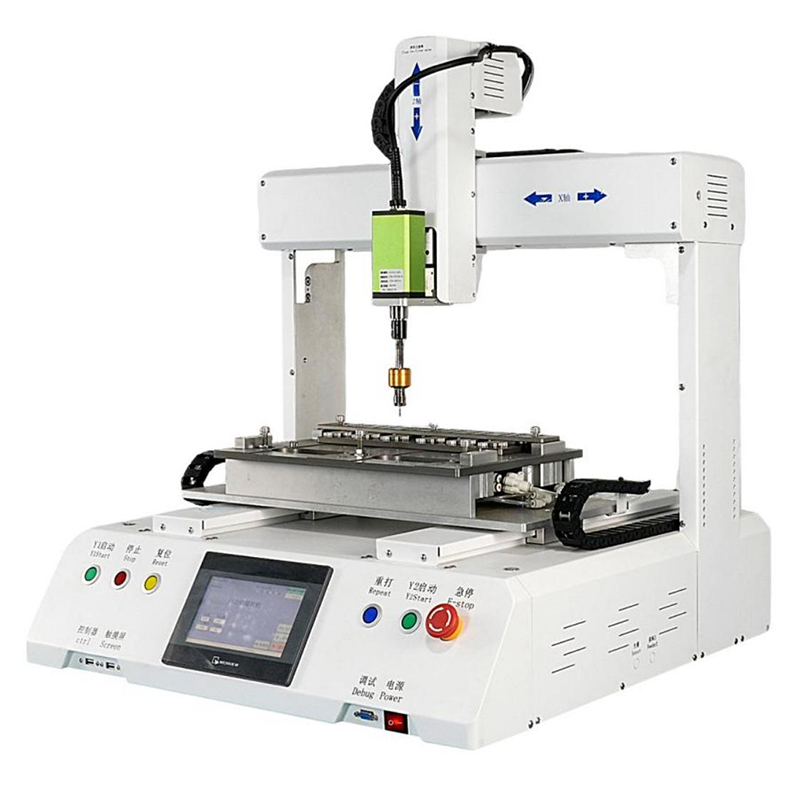

General Inspection Machine – machine configuration

Main functions:

• Equipped with go gauge head or no-go gauge head.

• Supports thread hole detection for M2~M16 screws.

• Allows quick change of go gauge head.

• Rigid sheet metal frame; feeder height is adjustable, compatible with products of varying heights.

• Closed-loop stepper motor with high precision, position compensation, no step loss, and low vibration.

• Equipped with high-performance motion control system, user-friendly and easy to program.

• With HMI touch screen,dynamically displays detection status; screwdriver speed and torque can be monitored in real time.

Equipment purpose:

• Used for go/no-go gauge inspection of M2~M16 threaded holes.

Technical Specifications:

Technical Specifications
Locking Range	250×250, customizable
Overall Dimensions	750*1400*1800mm, customizable (width, length, height).
Drive Type	Closed loop precision stepper moto
Positioning Accuracy	±0.02 mm
Control System	Touch screen+high-performance motion control card
Electric batch system	Intelligent servo electric batch, freely set torque and speed
Lock payment efficiency	Approximately 5 seconds
program capacity	100 groups
Equipment power	1500W
power supply	220VAC
gas source	0.5-0.6KPa
Total weight	80Kg
