Description

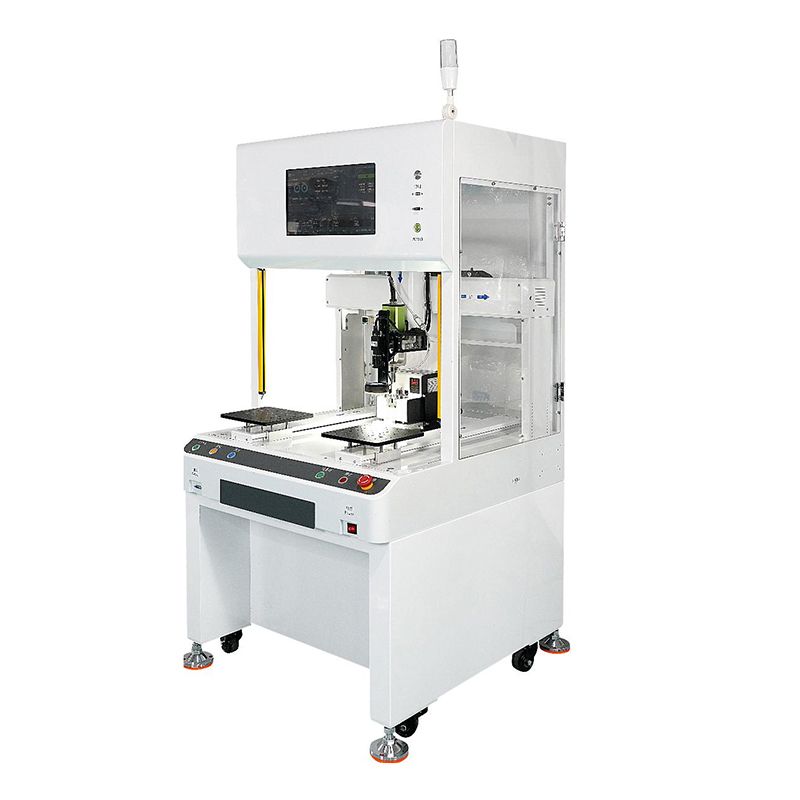

Automatic Thread Insert Assembly Machine – machine configuration

Main functions:

• Coordinate-type locking mechanism for thread insert installation and tightening.
• Dual Y-axis cyclic operation improves production efficiency, reduces operator difficulty, and ensures good product consistency.

• Supports thread insert installation and tightening for M4~M16.

• Can be equipped with multiple thread insert installation and tightening spindles.

• Rigid sheet metal frame; feeder height is adjustable,compatible with products of different heights.

• Closed-loop stepper motor with high precision, position compensation, no step loss and low vibration.

• Equipped with high-performance motion control system,user-friendly and easy to program.

• With HMI touch screen, dynamically displays detectionstatus; screwdriver speed and torque can be monitored in real time.

Equipment purpose:

• For high-precision thread insert installation and tightening of automotive parts and server sheet metal.

Technical Specifications:

Technical Specifications
Locking Range	250×250, customizable
Overall Dimensions	800*800*1700mm,, customizable (width, length, height).
Drive Type	Closed loop precision stepper moto
Positioning Accuracy	±0.02 mm
Control System	Touch screen+high-performance motion control card
Electric batch system	Intelligent servo electric batch, freely set torque and speed
Lock payment efficiency	Approximately 8.5 seconds
program capacity	100 groups
Equipment power	1500W
power supply	220VAC
gas source	0.5-0.6KPa
Total weight	200Kg
